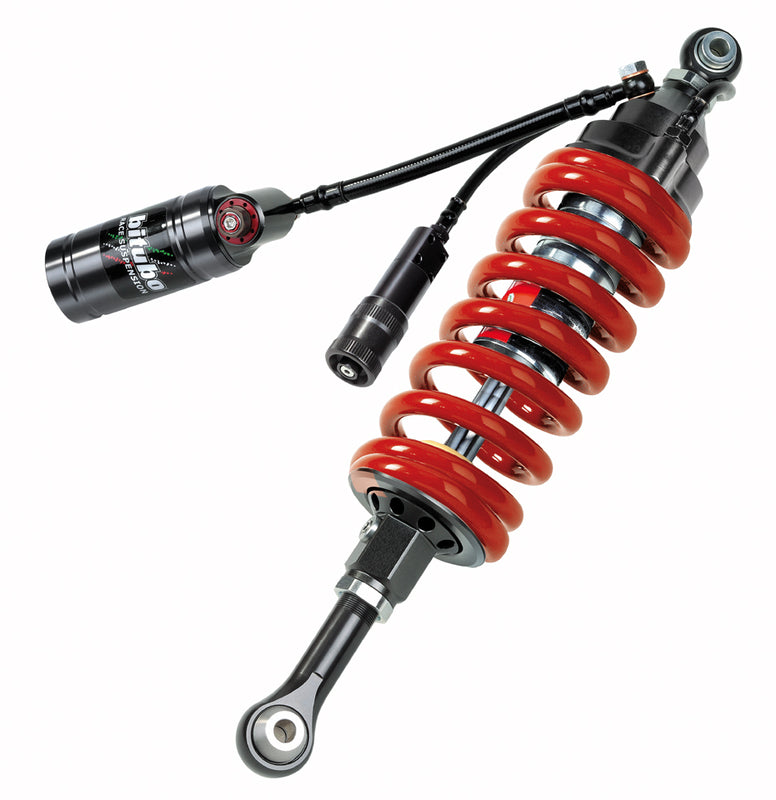

Yamaha Tenere 700 World Raid [BITUBO] - CLU31V2 rear shock absorber - red

Discover the latest generation of high performance shock absorbers with the BITUBO CLU31V2, designed specifically for demanding motorcyclists. This shock absorber combines advanced technology and outstanding performance features to take your driving experience to a new level.

Technical data:

• Product name: BITUB REAR SHOCK CLU3
• Description: BITUBO CLU31V2 rear shock absorber - red
• Volume: 18450 cm³
• Weight: 4509g
• Length: 558mm
• Width: 228mm
• Height: 145mm

Features and Benefits:

The BITUBO CLU31V2 shock absorbers are equipped with a variety of advanced features that differentiate them from traditional shock absorbers. Improved damping performance is achieved by using nitrogen and a floating separating piston in a separate compensation chamber. The 16mm diameter piston skirt is specially treated to minimize friction and extend service life.

Setting options:

The BITUBO CLU31V2 offers extensive setting options to adapt to different driving conditions and personal preferences:

• Low speed compression: 24 clicks
• Compression at high speeds: 20 clicks
• Extension: 24 clicks
• Hydraulic spring preload: 12 mm=24 clicks
• Center distance: 8 mm

These adjustment options allow the driver to precisely tune the shock absorber to his needs, resulting in optimal performance and comfort.

Accessories and installation:

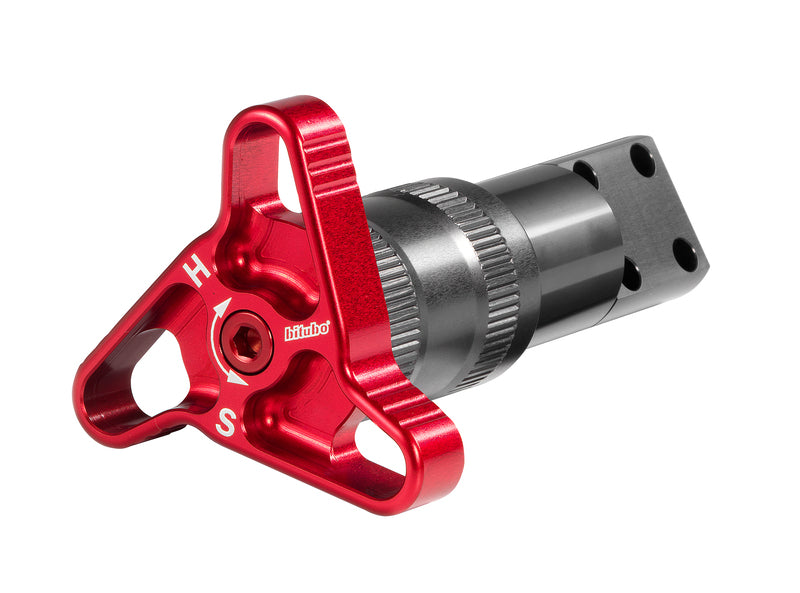

The BITUBO CLU31V2 comes with specific assembly instructions for each motorcycle model as well as a damping manual, ensuring easy and correct installation. A three-blade Ergal handwheel is available as a possible accessory, allowing easy adjustment of the preload.

With the BITUBO CLU31V2 rear shock absorber you rely on a combination of cutting-edge technology and high adaptability, specifically designed to maximize the performance and comfort of your motorcycle.
