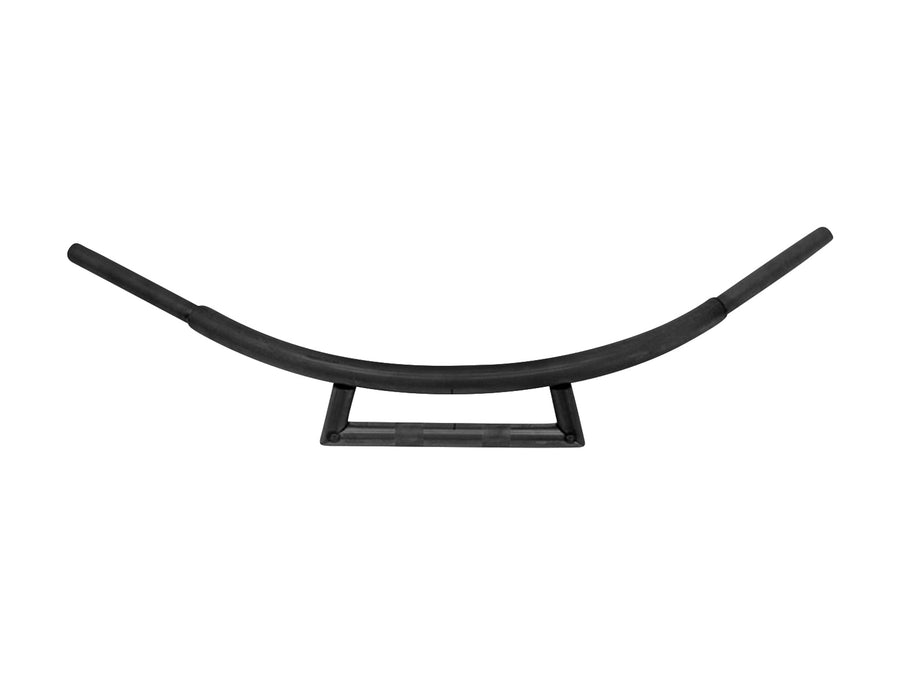

Motorcycle steering Ø 31 - handlebar round, at the bottom angular, 890 mm wide, black

The motorcycle driver from Fehling, model Ø 31, is characterized by its unique shape: round and angular at the top. With a width of 890 mm, this handlebar offers ergonomic and comfortable handling for the driver.

Product details

• Brand: False
• Model: Ø 31
• Article: Delener at the top, angular at the bottom, 890 mm wide, black
• Years of construction: K.A.

Technical properties

The handlebar has a diameter of 31.75 mm (1 1/4 inches) on the handle ends and 25.4 mm (1 inch) on the main part. It is equipped with a notch for electrical cables and a 3-hole cable guide, which simplifies the installation and maintenance.

Measure

• Width: 890 mm
• Height at the end of the external bend: 100 mm
• Depth back: 250 mm
• Height at the end of the end of the handle: 145 mm
• Dimensions at the intersection of the pipe outer edges: 285 mm
• Height in attachment: 100 mm
• Depth back (pullback) in attachment: 260 mm
• Maximum grip length: 200 mm
• Maximum clamping width: 200 mm
• Width of the knurling (outside): 120/60 mm

These dimensions are crucial for the correct adjustment of the handlebar to different motorcycle models and contribute to safety and performance when using.
