BMW R 1200 GS LC Rad [2013-2019] - Atlas Aluminum Side Case Set 48L + 41L

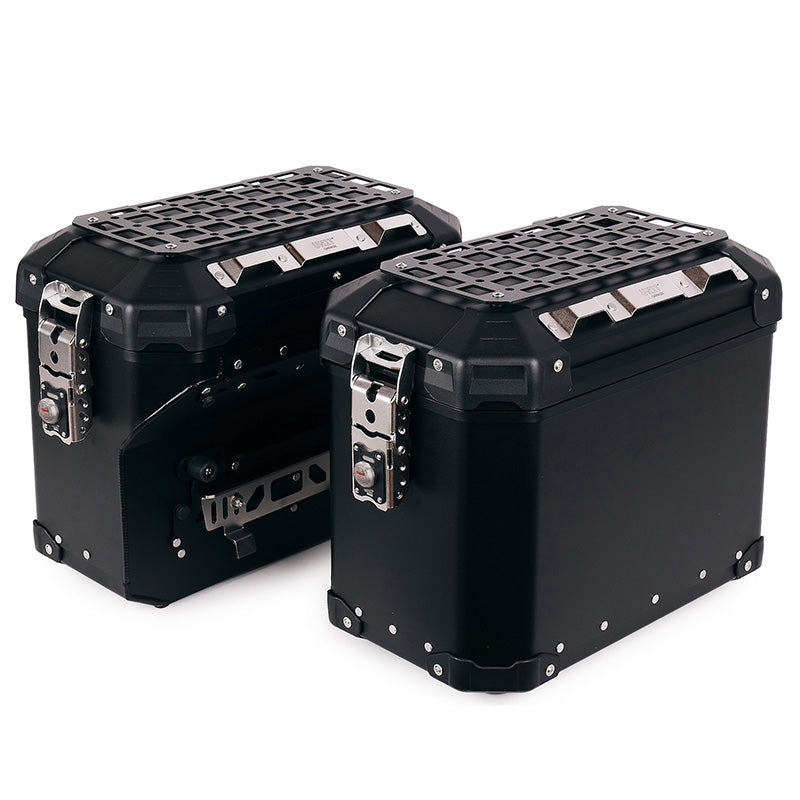

Spacious ATLAS aluminum side case set for touring and adventure

With 48 liters on one side and 41 liters on the exhaust side, this asymmetrical set offers ample storage space for longer tours. The 48-liter version accommodates a full-face helmet. Both cases are made entirely in Italy and individually assembled by hand.

Thoughtful Functionality

• Capacity: 1 × 48 liters and 1 × 41 liters
• 48-liter case with room for a full-face helmet

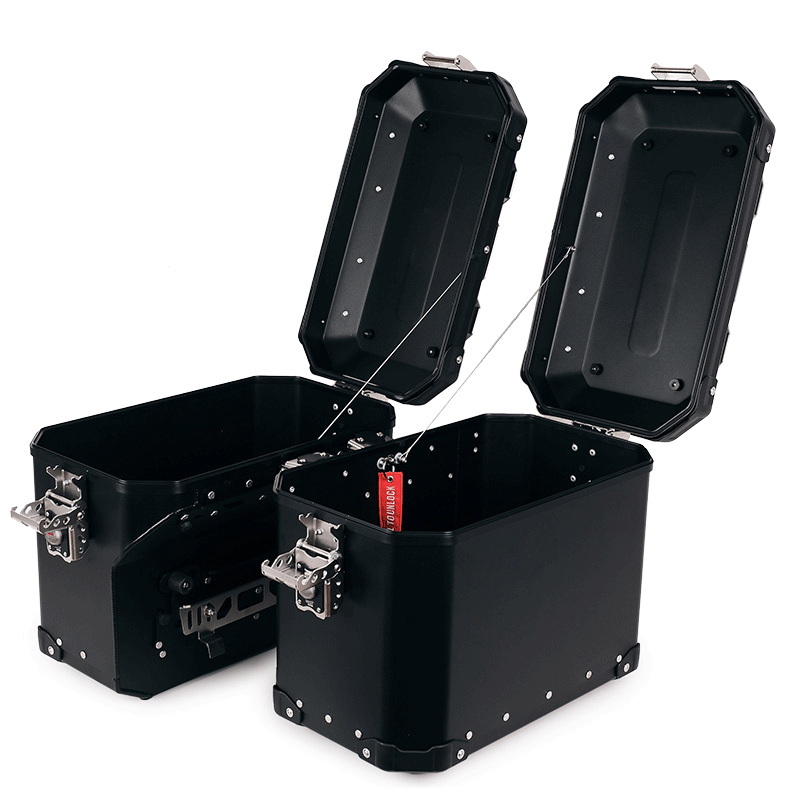

• Fully removable lids that open from either side
• Panels with Molle system for attaching accessories to the lids
• Additional attachment points for elastic nets or other accessories
• Rear safety latch for round tubular frames with a diameter of 18 mm

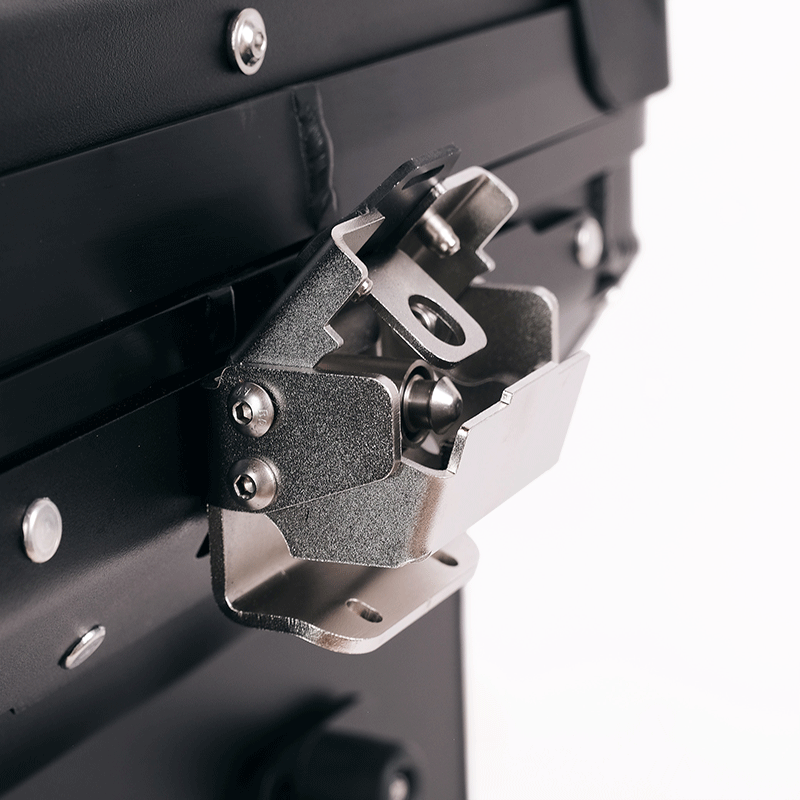

• Self-opening latch for easy attachment and removal
• Latches prepared for the included padlock and an additional padlock

Materials and Construction

• Body and lid made of high-strength aluminum alloy with a material thickness of 1,5 mm
• Rear mounting area with a material thickness of 4 mm
• Locks, hinges, screws, and hardware made of high-quality stainless steel
• Galvanically finished and electropolished accessories
• Replaceable plastic corner protectors
• Seals between the lid and case body
• Matte black finish

Dimensions and Weight

• Height per case: 390 mm
• Width per case: 475 mm
• Depth per case: 282 mm
• Weight per case: 6,8 kg

Package Contents and Locking System

The pair of cases comes with lock cylinders and matching keys. A separate key unification kit is available for BMW models, allowing the locking system to be matched to the motorcycle key.

Installation and Compatibility

The rear mounting system is designed for round tubular frames with a diameter of 18 mm. The set is listed for the BMW R 1200 GS LC Rad model years 2013 to 2019. Images may show an earlier product version.
