Yamaha XSR 700 [OHLINS] – Road/Track Shock Absorber

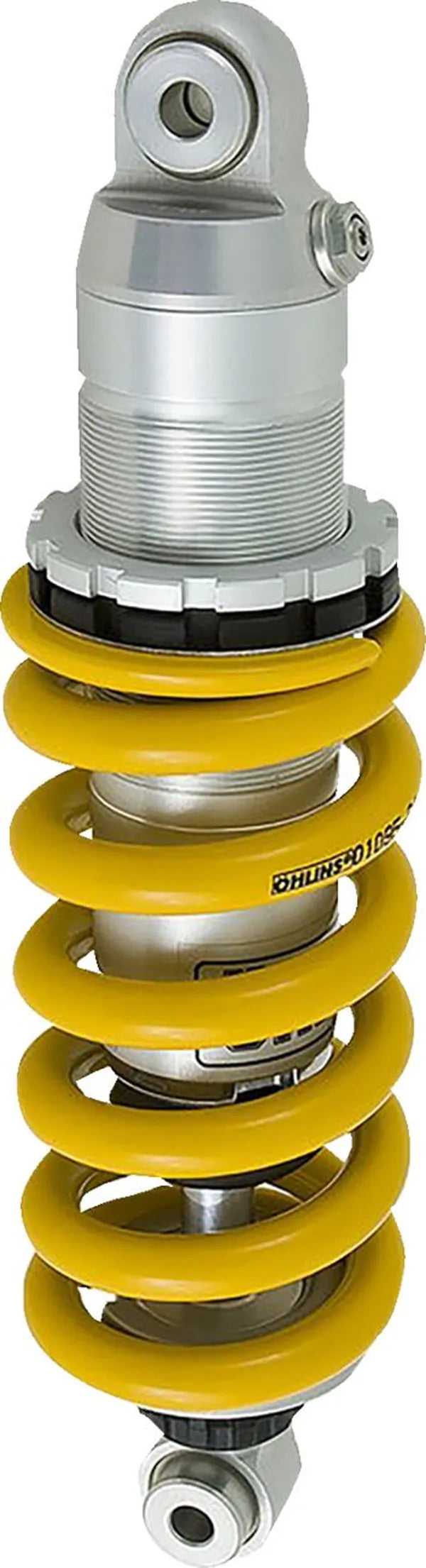

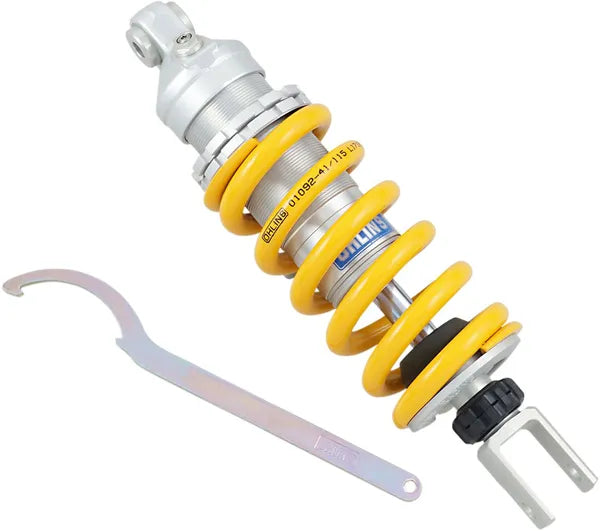

OHLINS shock absorber for Yamaha XSR 700

The OHLINS shock absorber has been specially developed for use on the road and racetrack. It is suitable for the Yamaha XSR 700 motorcycle model and offers precise chassis tuning through high-quality materials and technical features.

Technical characteristics

• Brand: OHLINS
• Model: STX
• Bore size: 46.00mm (1.81")
• Damper method: Hydraulic
• Setting type: Adjustable rebound damping, adjustable spring preload
• Length (extended): 312.00mm (12.29")
• Linear spring rate: 11.72 kg/mm (657.00 lb/in)
• Material: aluminum and steel
• Color/Surface: Chrome plated, yellow
• Mounting position: Back and front
• Position reservoir: Inside
• Type: Monotube shock absorber with spring sleeve

Product description

The OHLINS shock absorber is a monotube model with an integrated spring sleeve that provides improved damping performance. The hydraulic damper method ensures a smooth and controlled suspension that can be adapted to different driving conditions.

The rebound damping is adjustable, which means that the return of the damper can be optimally adapted to individual requirements. In addition, the adjustable spring preload allows the spring force to be fine-tuned, which contributes to balanced driving behavior.

The combination of aluminum and steel ensures high stability while reducing weight. The chrome-plated surface with yellow accents is not only visually appealing, but also corrosion-resistant.

The flexible mounting position allows installation on both the rear and front axle of the motorcycle. The internal reservoir contributes to the compact design and protects the damper fluid from external influences.

Designed for retail sale, this shock absorber complements the Yamaha XSR 700's suspension components to provide a precise and durable solution for various riding conditions.
